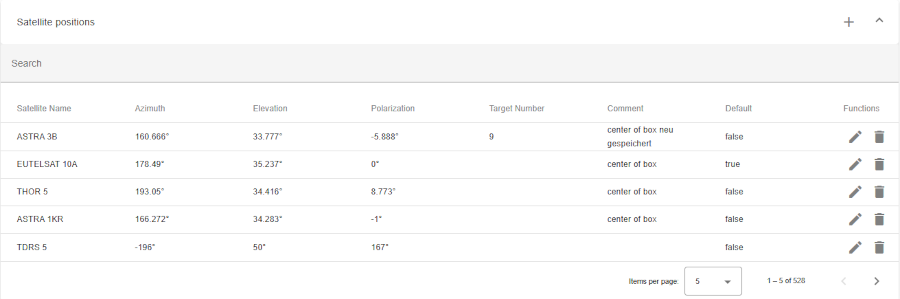

2.14.3.1 Satellite position table

The list of all satellite positions for the given antenna.

Top

• Left-side title of table.
• Plus (+) button to create new satellite position.
• Icon button to expand or collapse table

Search bar

• Located at the top of the table.
• Allows users to filter events by keywords.

Header row

• You can sort rows in ascending or descending order by clicking on the column header.
• Sorting is applied to the entire dataset, not just the current page.
• The active sort order (ascending or descending) is typically indicated by an arrow or icon near the column name.

Table columns

Accessing the table from satellites page:

• Device name: Device name from the MNC system.
• Alias: Alias of antenna.

Accessing the table from antennas page:

• Satellite name: The name of the satellite to which this data set relates.

Common columns:

• Azimuth: Antenna azimuth pointing angle in degrees (floating point).
• Elevation: Antenna elevation pointing angle in degrees (floating point).
• Polarization: Antenna polarization pointing angle in degrees (floating point).
• Target number: Saved target number at antenna controllers.
• Comment: Text describing the purpose of this database entry.
• Default: Default position for selected antenna. Excluded from satellite page
• Functions: Action icons for managing the satellite position:
  • Edit: Pencil icon to modify/edit.
  • Delete: Trash can icon to delete.

Bottom toolbar

• Pagination controls: Allows users to set the number of items displayed per page and navigate between pages.
