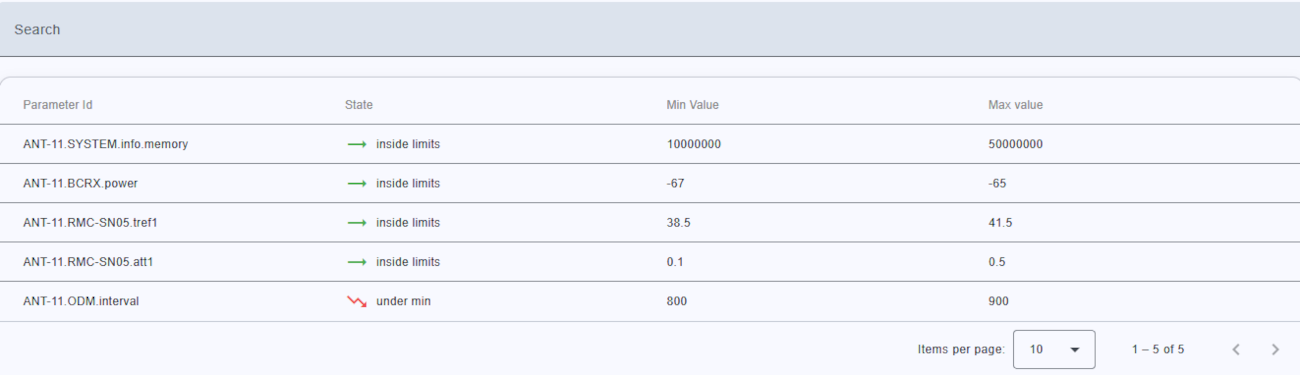

The Data Recorder Limits page provides the state information about configured thresholds (min,max) of parameter id in a table form.
Limits table
Column (from Limits) |
Description |
|---|---|
| Parameter name | The full parameter ID (e.g., MNC.DeviceName.ParameterId). |
| State | Current state of threshold with icon and description |
| Min value | Threshold |
| Max value | Threshold |
Click on the table row will open a device window for specified parameter ID.
Backend API Reference.
If you need to review the API contract for a particular action, refer to the API docs here: /api/v1/satrecdbstate/minmax.
