2.9.2 Dialogs

Add preset dialog

• Trigger: When you click on the "+" near the delete icon and preset name input to add a new preset create new preset.

• Fields:

  • Name: The user defined name of preset. Name must be unique compared to other presets.

• Actions:

  • Add: Adds the new preset.
  • Cancel: Closes the dialog without saving.

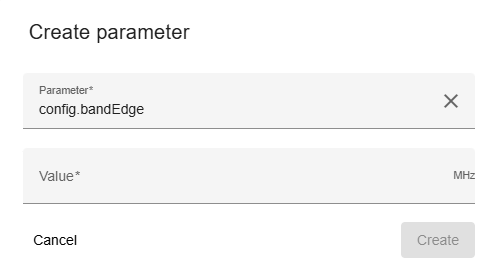

Add/edit parameter

• Trigger:

  • when you click on the "+" button on the bottom toolbar to create new parameter or
  • an on pencil icon to edit in the menu column
  • The dialog title clearly indicates whether you are creating a new parameter, editing an existing one, ensuring clarity in the action being performed.

• Fields:

  • Parameter: Parameter should be selected from dropdown list. As soon as you have selected a parameter value, the value input will be displayed.
  • Value: The parameter value van be added.

• Actions:

  • Create/Save:
    • For new parameter, this creates the parameter with the provided details.
    • For existing parameter, this saves modifications.
    • If an error occurs in the input fields, the button is deactivated.
  • Cancel: Closes the dialog without saving.

Confirmation dialog

• Trigger: Opens when you click the
  • delete preset
  • delete parameter
• Content: Asks the user to confirm the action, depending on where you trigger the dialog.
• Actions:
  • Yes: Confirm the action.
  • Cancel: Cancels the action.
