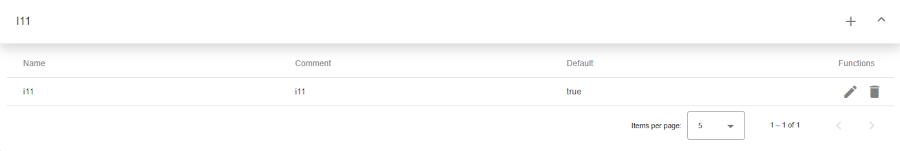

2.12.3.1 I11 table

Intelsat 11 elements describing the satellite path for a given time. It is comparable to TLE (Two-Line Elements) but it is possible to have multiple I11 elements per satellite for the same time but with different accuracy. It may be useful to store very accurate I11 elements but they are only valid for a short time and in case that you are not able to update regularly, you can store a long term I11 in the database to be prepared if the short term element is expired.

Top

• Left-side title of table.
• Plus (+) button to create new i11.
• Icon button to expand or collapse table

Header row

• You can sort rows in ascending or descending order by clicking on the column header.
• Sorting is applied to the entire dataset, not just the current page.
• The active sort order (ascending or descending) is typically indicated by an arrow or icon near the column name.

Table columns

• Name: The name of the satellite as stated in the original I11 parameter set.
• Default: True means this is the default I11 dataset for this satellite.
• Comment: Describing the purpose of this dataset.
• Functions: Action icons for managing the key:
  • Edit: Pencil icon to modify/edit.
  • Delete: Trash can icon to delete.

Bottom toolbar

• Pagination controls: Allows users to set the number of items displayed per page and navigate between pages.
