2.14.3.2.2 Dialogs

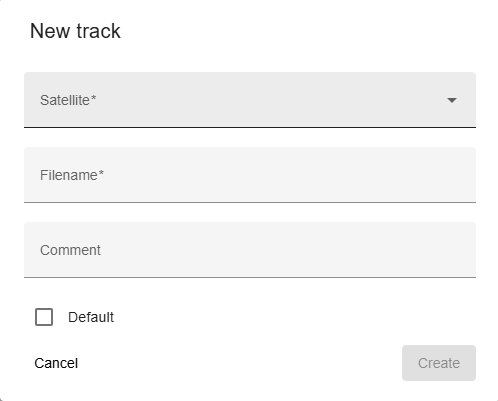

Add/edit track dialog

• Trigger:
  • when you click on the "+" button on the top toolbar to create new or
  • an on pencil icon to edit track in the menu column
  • The dialog title clearly indicates whether you are creating a new, editing an existing one, ensuring clarity in the action being performed.
• Fields:
  • Satellite name: Select an satellite name from drop-down to which the data set should refer.
  • Filename: The name of the data file containing the position data of the satellite.
  • Target number: A target number to be set at some antenna controllers.
  • Comment: Free text describing the purpose of this dataset.
  • Default: Set track as default.
• Actions:
  • Create/Save:
    • For new track, this creates the track with the provided details.
    • For existing track, this saves modifications.
    • If an error occurs in the input fields, the button is deactivated.
  • Cancel: Closes the dialog without saving.

On delete confirmation dialog

• Trigger: Opens when you click the trash icon for an track from menu column.
• Content: Asks the user to confirm whether they want to delete the selected track.
• Actions:
  • Yes: Deletes the track permanently.
  • Cancel: Cancels the deletion action.
