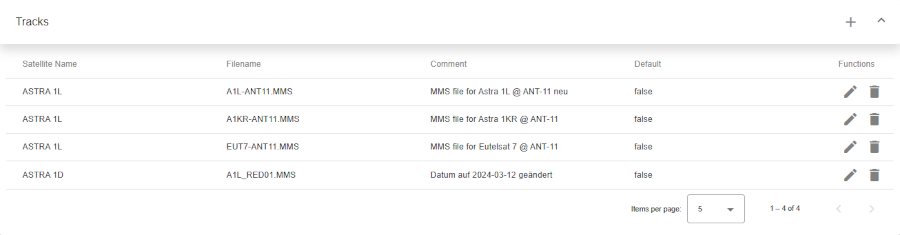

2.14.3.2 Tracks table

Especially for fast moving satellites or satellites in a transition phase it may be necessary to move the antenna with a pre-calculate list of satellite postions. These list is called a track. Files with tracks are usually created by satellite operators. These files have one line per step with: timestand, azimuth, elevation and polarization.

Top

• Left-side title of table.
• Plus (+) button to create new track.
• Icon button to expand or collapse table

Header row

• You can sort rows in ascending or descending order by clicking on the column header.
• Sorting is applied to the entire dataset, not just the current page.
• The active sort order (ascending or descending) is typically indicated by an arrow or icon near the column name.

Table columns

• Satellite name: The name of the satellite to which this data set relates.
• Filename: Saved name of the data file containing the position data of the satellite.
• Comment: Text describing the purpose of this database entry.
• Default: Default track for selected antenna.
• Functions: Action icons for managing the track:
  • Edit: Pencil icon to modify/edit.
  • Delete: Trash can icon to delete.

Bottom toolbar

• Pagination controls: Allows users to set the number of items displayed per page and navigate between pages.
