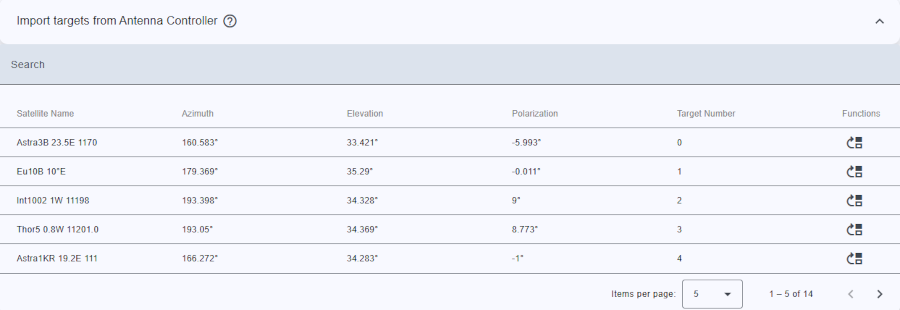

1.14.3.3 Imports table

This tables contains the target list read from an ACU device.

Top

• Left-side title of table.
• Icon button to expand or collapse table

Search bar

• Located at the top of the table.
• Allows users to filter events by keywords.

Header row

• You can sort rows in ascending or descending order by clicking on the column header.
• Sorting is applied to the entire dataset, not just the current page.
• The active sort order (ascending or descending) is typically indicated by an arrow or icon near the column name.

Table columns

• Satellite name: The name of the satellite to which this data set relates.
• Azimuth: Antenna azimuth pointing angle in degrees (floating point).
• Elevation: Antenna elevation pointing angle in degrees (floating point).
• Polarization: Antenna polarization pointing angle in degrees (floating point).
• Target number: Saved target number at antenna controllers.
• Functions: Action icons for managing the ACU-Target:
  • Import: Open a dialog to perform action.

Bottom toolbar

• Pagination controls: Allows users to set the number of items displayed per page and navigate between pages.
