1.6.2 Multi chart

The Multi Chart view provides additional features compared to the default Single chart view.

data-recorder-multi-chart-toolbar-web

  1. Chart types: Supports multiple chart types: Line Chart, Bar Chart, and Bubble Chart.

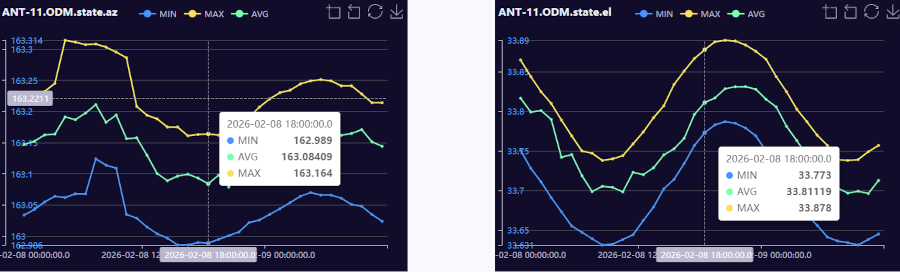

  2. Connect charts: Connects all charts so that interactions (such as zooming or panning) are synchronized across them.

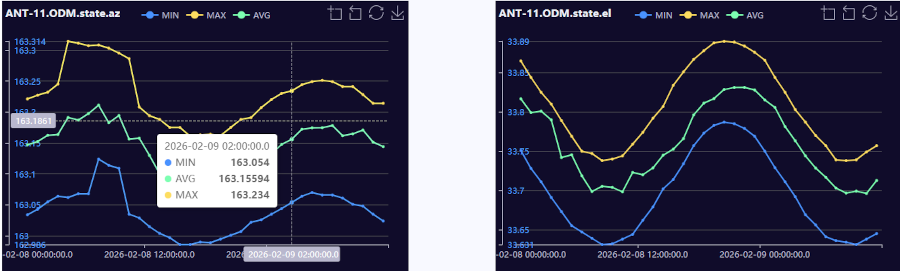

  3. Disconnect charts: Disconnected the all connected charts.This option remains disabled if no charts are currently connected.

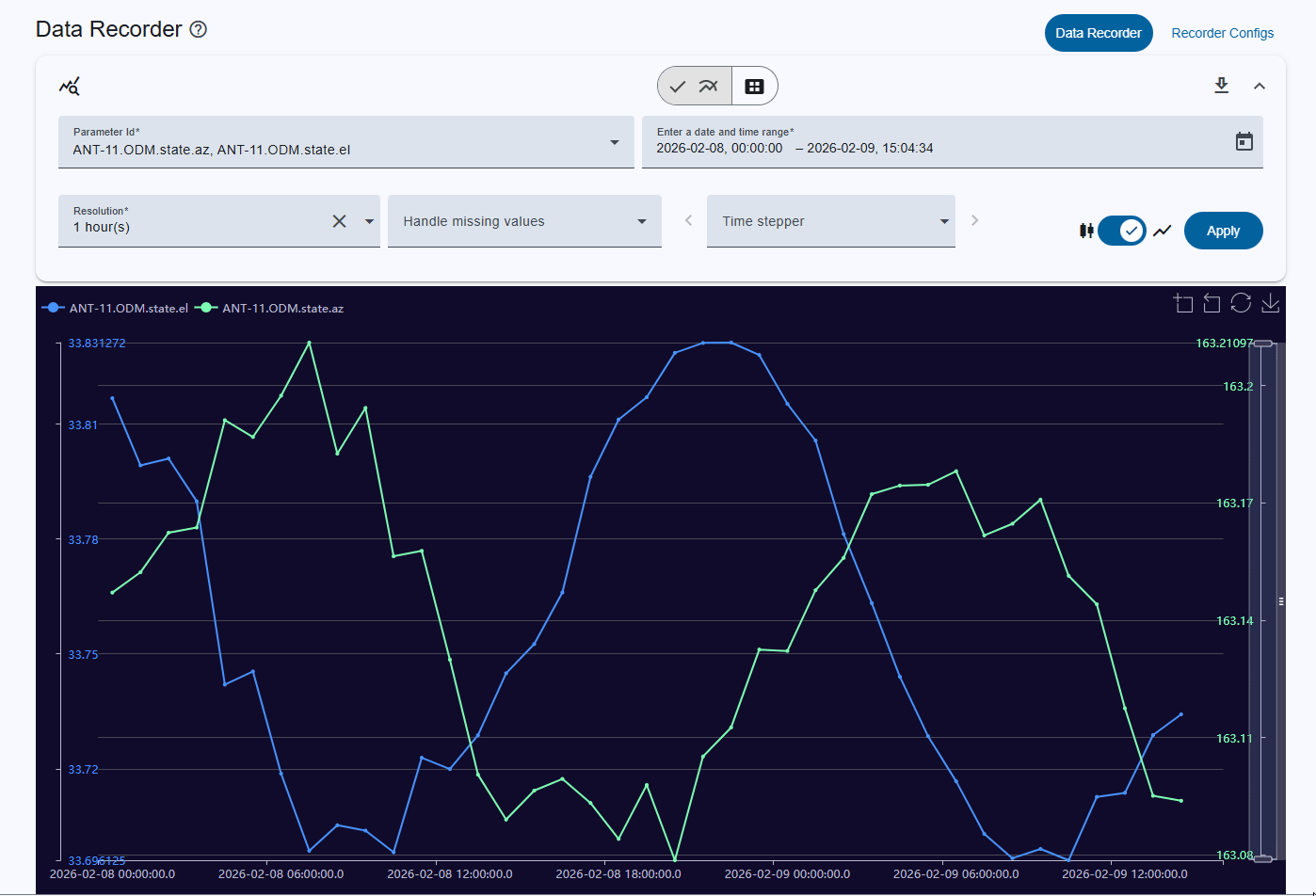

This section shows how the same single chart appears in the Multi Chart view.

data-recorder-web-gif
