1.12.3.2.2 Dialogs

Add/edit beacon dialog

• Trigger:

  • when you click on the "+" button on the top toolbar to create new or
  • an on pencil icon to edit beacon in the menu column
  • The dialog title clearly indicates whether you are creating a new, editing an existing one, ensuring clarity in the action being performed.

• Fields:

  • Frequency: Beacon frequency, floating point, MHz.
  • Polarization: An enumeration, one of "H", "V", "RHCP" or "LHCP".
  • Comment: Free text describing the purpose of this dataset.
  • Default: Set beacon as default.

• Actions:

  • Create/Save:
    • For new beacon, this creates the beacon with the provided details.
    • For existing beacon, this saves modifications.
    • If an error occurs in the input fields, the button is deactivated.
  • Cancel: Closes the dialog without saving.

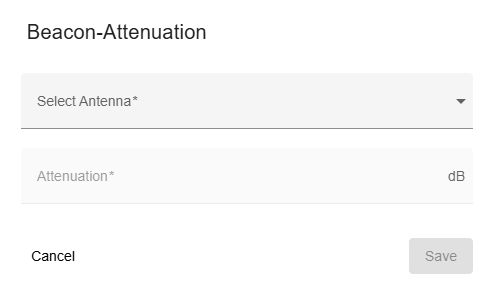

Modify beacon attenuation

• Trigger: Click on the pencil outlined button in the row under attenuation

• Fields:

  • Select antenna: Drop-down to select antenna.
  • Attenuation: Receiver attenuation, floating point, dB.

• Actions:

  • Save:
    • Saves modifications.
    • If an error occurs in the input fields, the button is deactivated.
  • Cancel: Closes the dialog without saving.

On delete confirmation dialog

• Trigger: Opens when you click the trash icon for an key from menu column.
• Content: Asks the user to confirm whether they want to delete the selected beacon.
• Actions:
  • Yes: Deletes the beacon permanently.
  • Cancel: Cancels the deletion action.
