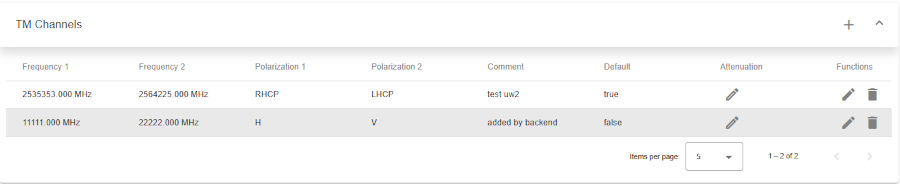

1.12.3.4 TM channel table

Telemetry (TM) channels defining communcation channels used to receive status and measurement data from satellites.

Top

• Left-side title of table.
• Plus (+) button to create new TM channel.
• Icon button to expand or collapse table

Header row

• You can sort rows in ascending or descending order by clicking on the column header.
• Sorting is applied to the entire dataset, not just the current page.
• The active sort order (ascending or descending) is typically indicated by an arrow or icon near the column name.

Table columns

• Frequency 1: Primary receive frequency, floating point, MHz.
• Frequency 2: Secondary receive frequency, floating point, MHz.
• Polarization 1: This is an enumeration.
• Polarization 2: This is an enumeration.
• Comment: Describing the purpose of this beacon.
• Default: True means this is the default TM channel dataset for this satellite. . Attenuation: Modify attenuation value stored in the database for one particular pair of antenna and TM channel. Opens TC-Attenuation dialog.
• Functions: Action icons for managing the key:
  • Edit: Pencil icon to modify/edit.
  • Delete: Trash can icon to delete.

Bottom toolbar

• Pagination controls: Allows users to set the number of items displayed per page and navigate between pages.
