1.17 Stream keys

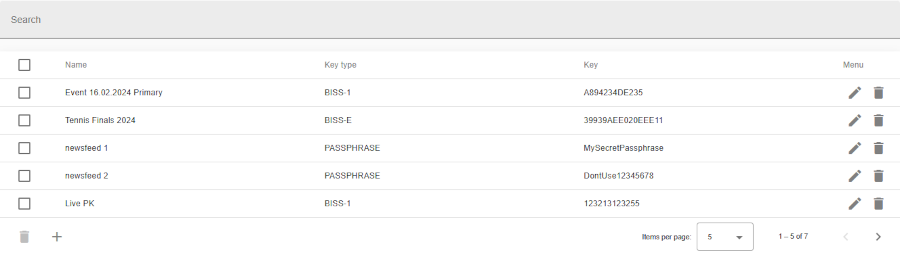

The Stream key is record holds the information about one BISS or SRT key in the database. The Table provides a detailed interface to manage keys. It allows users to view, edit, delete, and create key efficiently.

Search bar

• Located at the top of the table.
• Allows users to filter keys by keywords, such as name, key type and key.

Header row

• You can sort rows in ascending or descending order by clicking on the column header (e.g. name, key, etc.).
• Sorting is applied to the entire dataset, not just the current page.
• The active sort order (ascending or descending) is typically indicated by an arrow or icon near the column name.

Table columns

• Checkbox column:
  • Location: The checkbox column is located at the far left of the table.
  • Purpose: Allows users to select one or multiple keys for delete key(s).
  • Functionality:
    • Single Selection: Click on a single checkbox to select an individual row.
    • Multiple Selection: Click multiple checkboxes to select multiple rows at once.
    • Select All: The checkbox in the header row allows you to select or deselect all rows on all pages.
    • Delete: After selecting events, delete action on bottom toolbar can be performed for all selected items.
• Name: The user defined unique name of stream key.
• Key type: The key type, one of 'BISS-1', 'BISS-E' or 'PASSPHRASE'.
• Key: The stored key in database.
• Functions: Action icons for managing the key:
  • Edit: Pencil icon to modify/edit the key.
  • Delete: Trash can icon to delete the key.

Bottom toolbar

• Delete selected keys: A button to delete selected keys/rows from checkbox column.
• Create key: + button is used to create new stream key.
• Pagination controls: Allows users to set the number of items displayed per page and navigate between pages.
