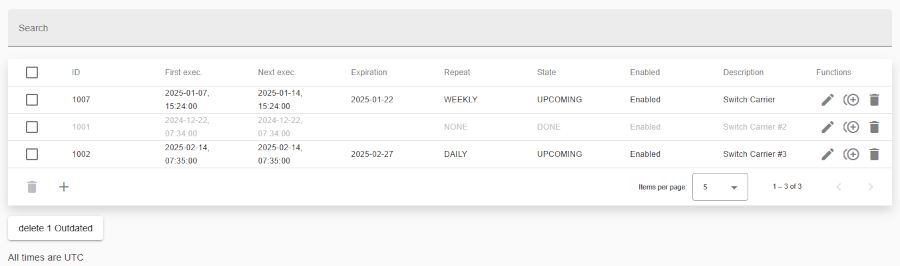

1.15.3 Table view

The Scheduler Table View provides a detailed interface to manage and monitor scheduled events. It allows users to view, edit, delete, and create events efficiently. All times displayed are in UTC.

Search bar

• Located at the top of the table.
• Allows users to filter events by keywords, such as ID, description, repeat type, etc.

Header row

• You can sort rows in ascending or descending order by clicking on the column header (e.g., ID, First Exec., Next Exec., etc.).
• Sorting is applied to the entire dataset, not just the current page.
• The active sort order (ascending or descending) is typically indicated by an arrow or icon near the column name.

Table columns

• Checkbox column:
  • Location: The checkbox column is located at the far left of the table.
  • Purpose: Allows users to select one or multiple events for delete event.
  • Functionality:
    • Single Selection: Click on a single checkbox to select an individual event.
    • Multiple Selection: Click multiple checkboxes to select multiple events at once.
    • Select All: The checkbox in the header row allows you to select or deselect all events on all pages.
    • Delete: After selecting events, delete action on bottom toolbar can be performed for all selected items.
• ID: Unique identifier for each scheduled event.
• First exec.: The date and time when the event is scheduled to execute for the first time.
• Next exec.: The next scheduled execution date and time for the event.
• Expiration: The date when the event is set to expire and stop repeating.
• Repeat: Indicates the recurrence type of the event:
  • NONE: The event does not repeat.
  • DAILY: The event repeats every day until expiration.
  • WEEKLY: The event repeats weekly until expiration.
  • YEARLY: The event repeats yearly until expiration.
• State: Displays the current state of the event:
  • UPCOMING: The event is scheduled for a future execution.
  • DONE: The event has been executed.
• Enabled: Shows whether the event is active or disabled.
• Description: A brief description of the event.
• Functions: Action icons for managing the event:
  • Edit: Pencil icon to modify the event.
  • Delete: Trash can icon to remove the event.
  • Duplicate: Circular arrow icon to duplicate the same event.

Bottom toolbar

• Delete selected events: A button to delete selected events/rows from checkbox column.
• Create event: + button is used to create new event.
• Delete outdated: A button to delete outdated events from the list.
• Pagination controls: Allows users to set the number of items displayed per page and navigate between pages.
• UTC notice: A reminder that all times displayed are in Coordinated Universal Time (UTC).
