3.1.1.4 Fault states overview

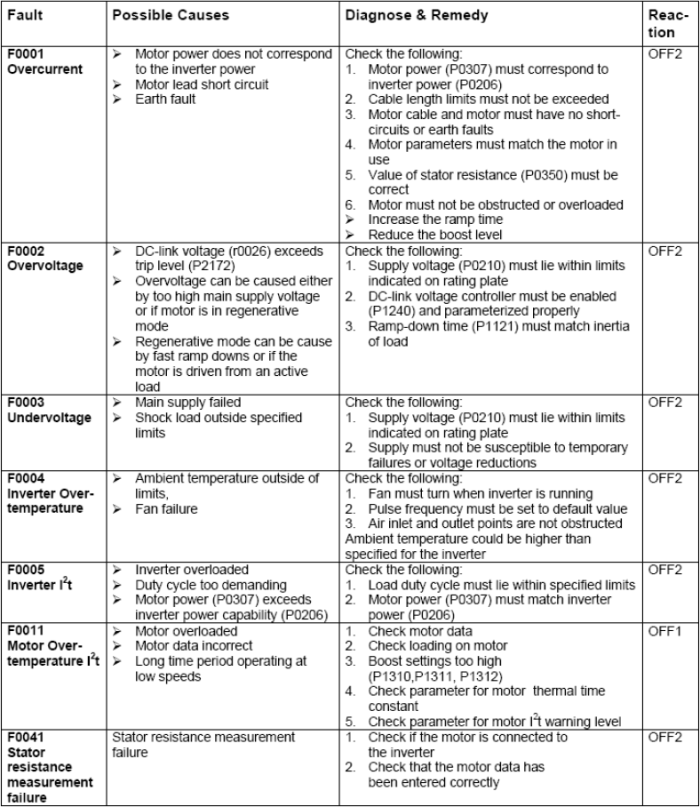

The following tables give you a short overview over the fault states, the frequency inverter is able to display. Table 6 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

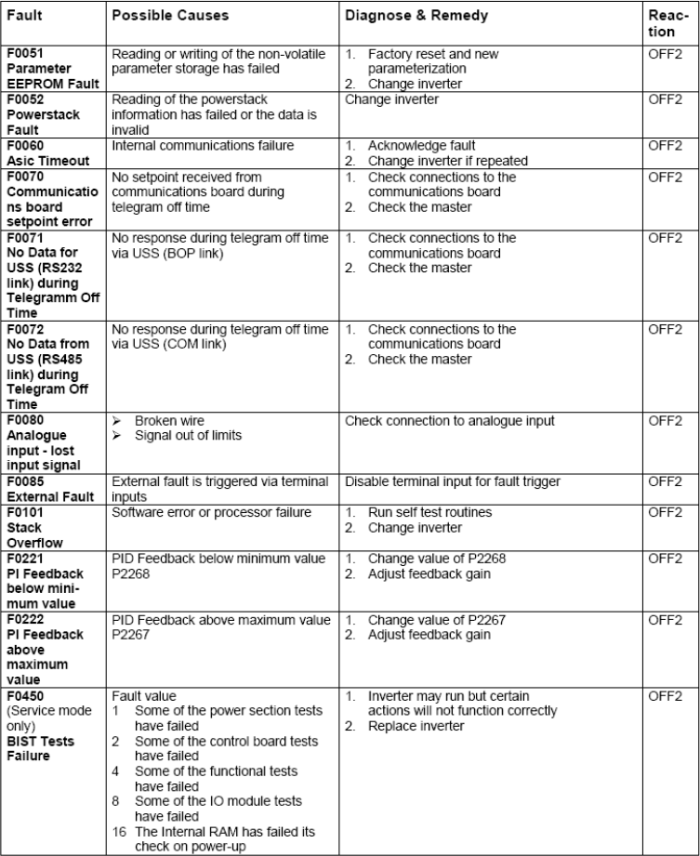

Table 7 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

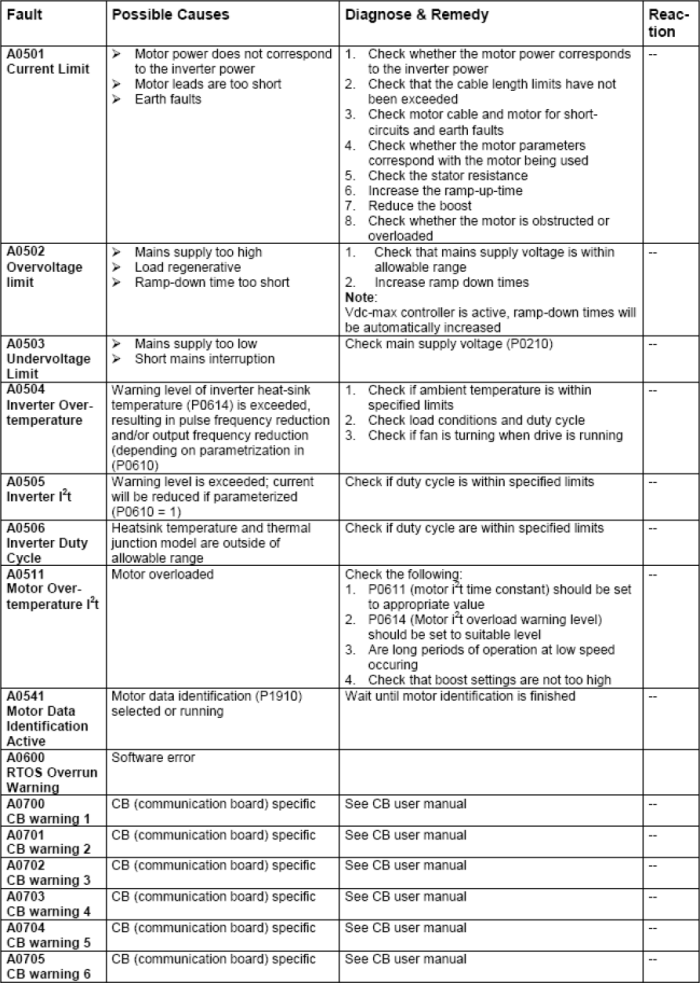

Table 8 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

Table 9 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

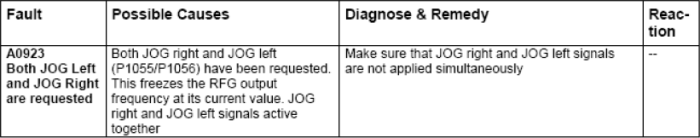

Table 10 origin: Siemens user Documentation 6SE6400-5AA00-0BP0
