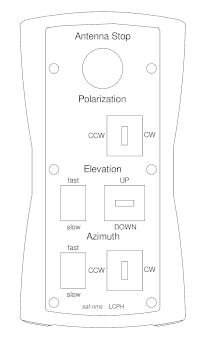

The Local Maintenance Controller is a Handheld, which realize a sat-nms ACU-ODM independent direct control of all 3 motor driver.

Operation

The operation is more or less self explanatory. Please make sure that the “Ant Stop� button is released before you try to move the antenna. Use the button which is for each axis available to move the antenna in the defined direction. With the fast/slow switch you can choose the speed of the azimuth and elevation axis.

Remark: Requires LCPH-UP if sat-nms ACU-ODU-AC was delivered before 5/2014.
