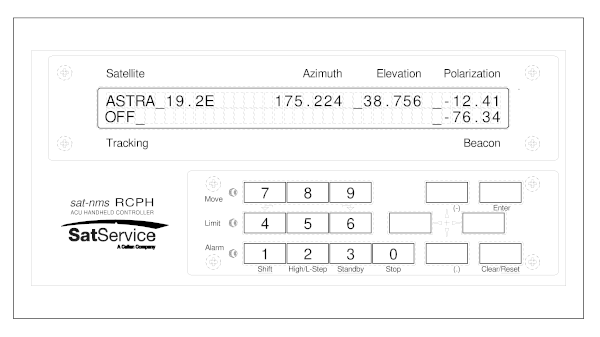

The RCPH is a ruggedized control panel which is useable to control the basic settings of the ACU without the need of a Ethernet connection. The interface to the ACU-ODM is a serial RS422 link. The integrated display shows angle values of all 3 axes and beacon level. There is possible to control of all 3 axes manually as Jog-Control or by enter desired angle values via keyboard. Also step move and a target call will be supported. For a detailed operation description see chapter 6.

Remark: Requires RCPH-UP for sat-nms ACU-ODU-xx to realize the interconnection.
