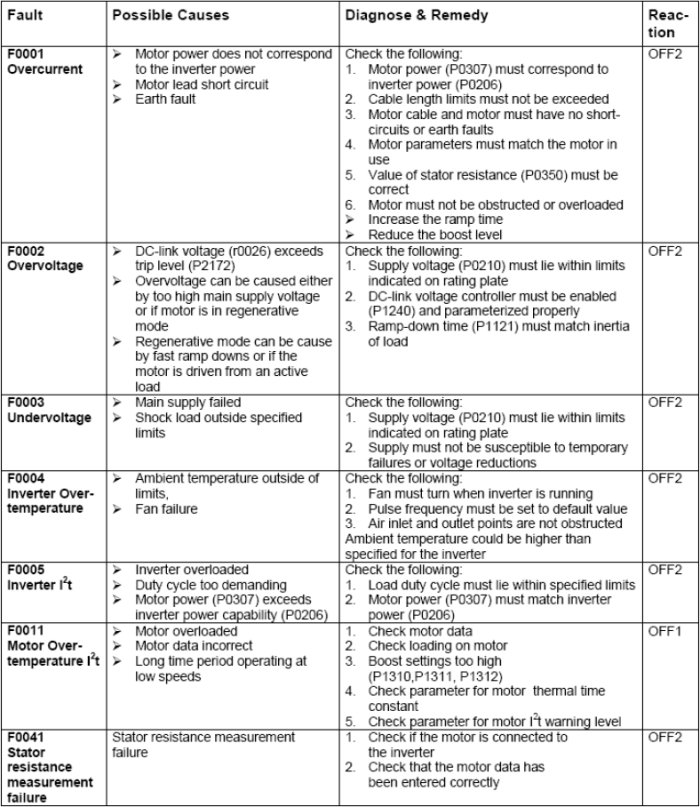

The following tables give you a short overview over the fault states, the frequency inverter is able to display. table6.gif Table 6 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

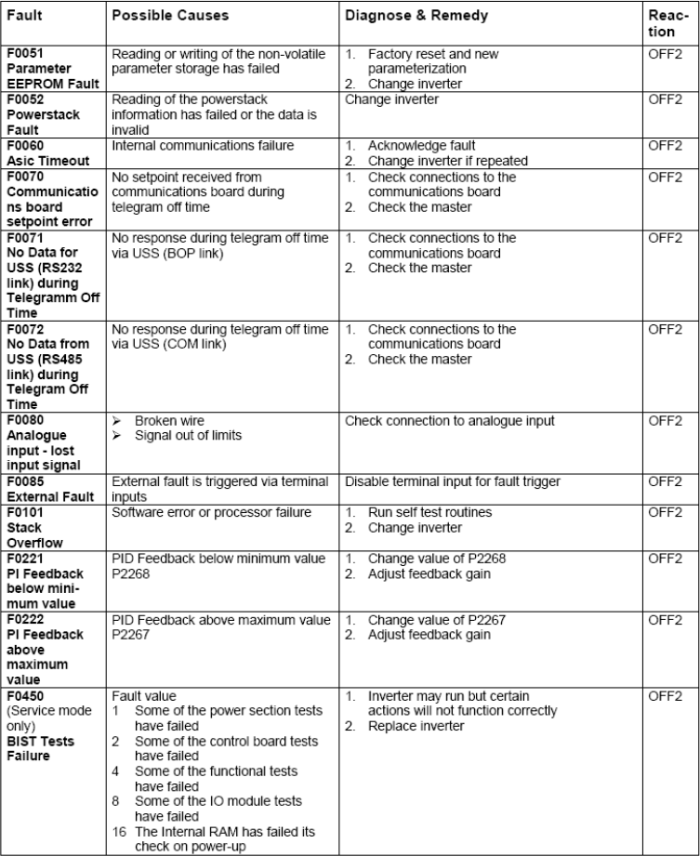

table7.gif Table 7 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

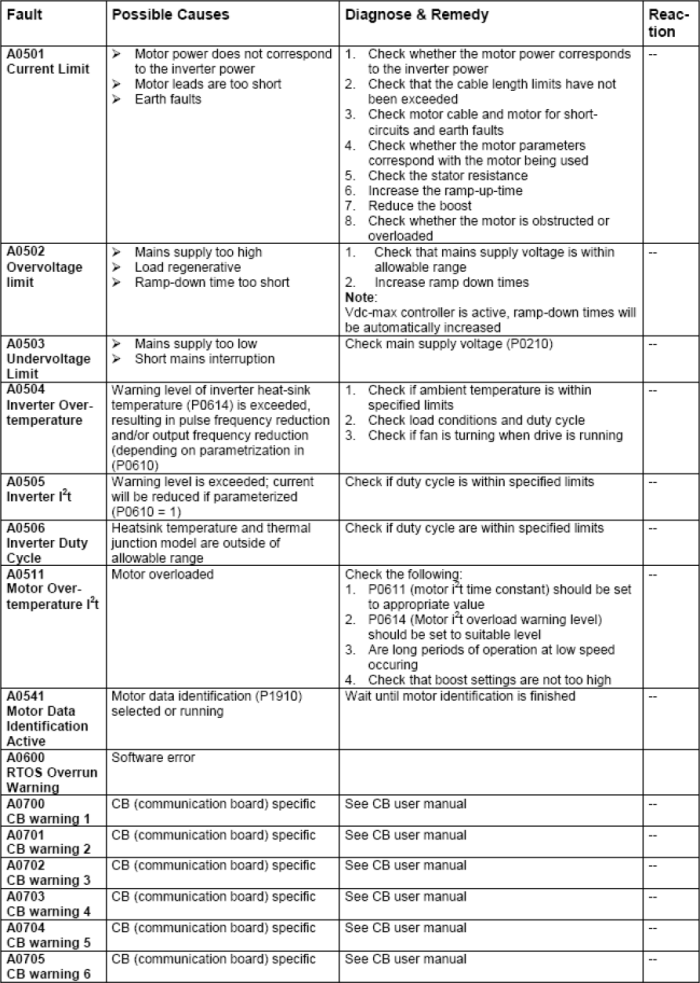

table8.gif Table 8 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

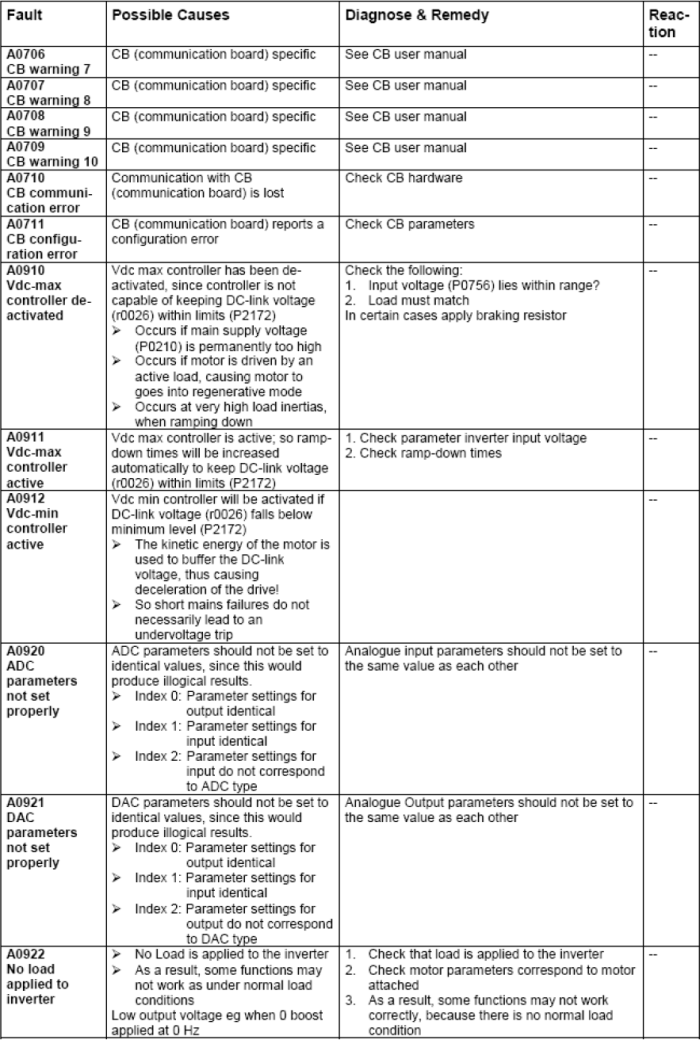

table9.gif Table 9 origin: Siemens user Documentation 6SE6400-5AA00-0BP0

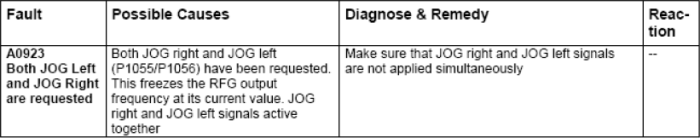

table10.gif Table 10 origin: Siemens user Documentation 6SE6400-5AA00-0BP0
