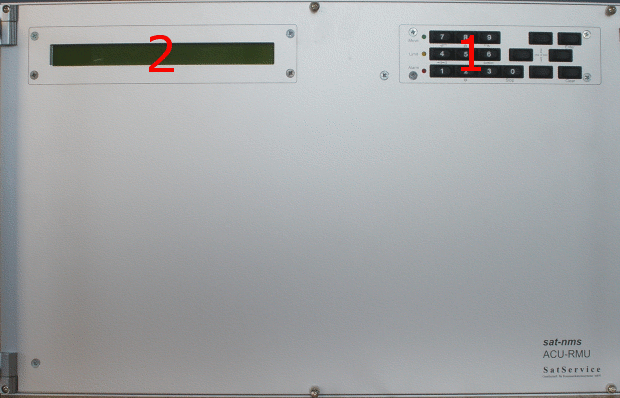

Front panel view (with integrated optional display and keyboard)The sat-nms ACU-RMU is a full featured antenna positioner and antenna tracking system. It is completely integrated to a 6RU 19inch case.
It consists from the components listed in the following table. All of these components are described in the next chapters.
| No. | component | No. | component |
|---|---|---|---|
| 1 | Frontpanel Keyboard | 6 | Power Supplies |
| 2 | Frontpanel Display | 7 | sat-nms ACU-ODM |
| 3 | Frequency Inverters | 8 | Solid State Relays |
| 4 | Circuit Breakers | 9 | Rear Panel |
| 5 | Contactor |
Front panel view (with integrated optional display and keyboard)

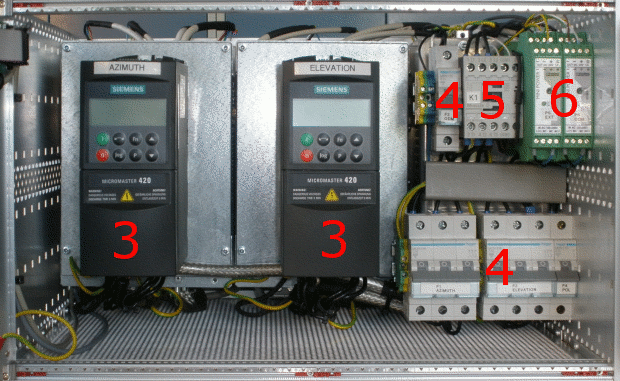

Front view with opened frontpanel

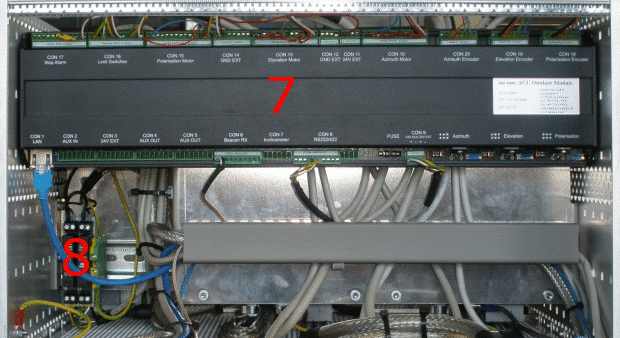

Rear view with opened rearpanel

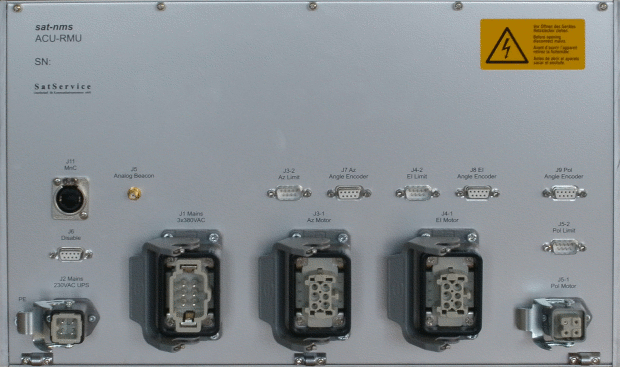

Rear panel
view (standard connector version, with integrated POL-drive)
