2.4.1 Connector Layout

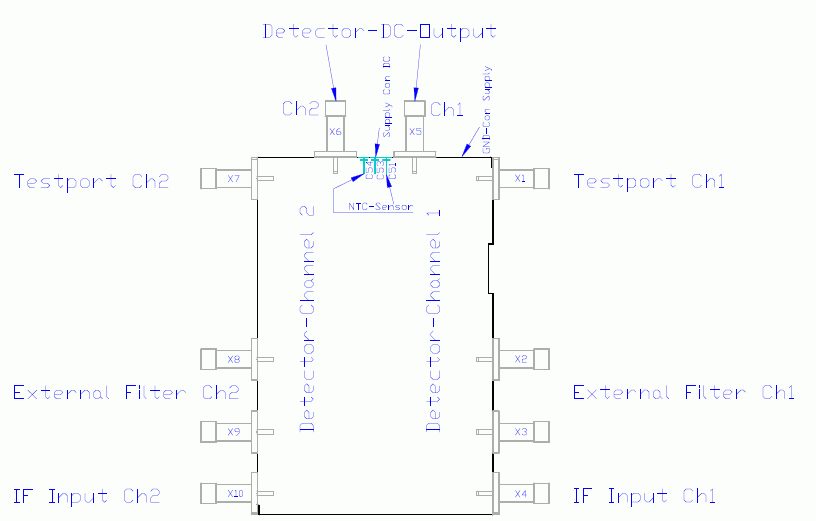

Below the connector layout of the sat-nms RMD is shown. For the IF inputs, external filters and for the dc outputs are all connectors SMA. This provides a maximum resistance against interferer. The detector is shown from top view. In this position you can read the label correct.
