1.12.3.1.2 Dialogs

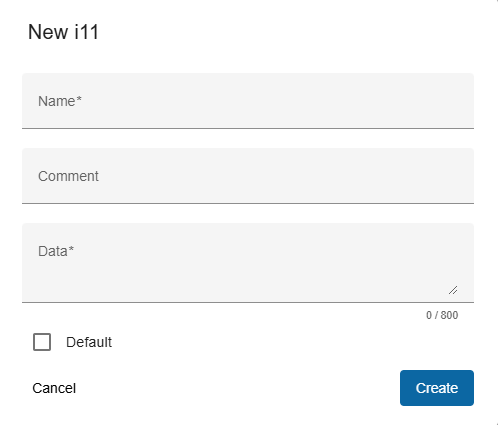

Add/edit i11 dialog

• Trigger:

  • when you click on the "+" button on the top toolbar to create new or
  • an on pencil icon to edit i11 in the menu column
  • The dialog title clearly indicates whether you are creating a new, editing an existing one, ensuring clarity in the action being performed.

• Fields:

  • Name: The name of the satellite as stated in the original I11 parameter set.
  • Comment: Free text describing the purpose of this dataset.
  • Norad number: unique name (world wide standardized)
  • Data: The 11 ephemeris parameters, floating point, separated by semicolon characters.
  • Default: Set i11 as default.

• Actions:

  • Create/Save:
    • For new i11, this creates the satellite with the provided details.
    • For existing i11, this saves modifications.
    • If an error occurs in the input fields, the button is deactivated.
  • Cancel: Closes the dialog without saving.

On delete confirmation dialog

• Trigger: Opens when you click the trash icon for an key from menu column.
• Content: Asks the user to confirm whether they want to delete the selected i11.
• Actions:
  • Yes: Deletes the i11 permanently.
  • Cancel: Cancels the deletion action.
