5 Connector Reference

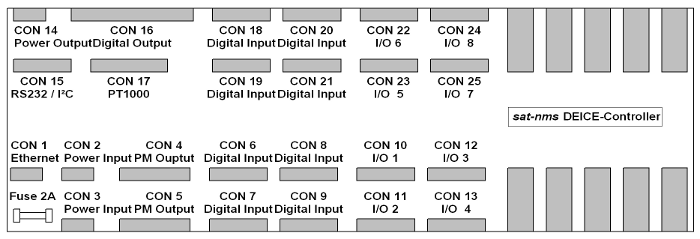

Connector layout DEICE-Controller

CON1 LAN

Pin	Identifier	Description	Type
1	TX+	default Ethernet cabling (10Base-T)	OUT
2	TX-		OUT
3	RX+		IN
4
5
6	RX-		IN
7
8

CON2 power input

Pin	Identifier	Description	Type
1	24V DC	voltage input for DEICE-Controller	DC in
2	GND DC		DC in
3	24V EXT	voltage input for WG Switches etc.	DC in
4	GND EXT		DC in

CON3 power input

Pin	Identifier	Description	Type
1	24V DC	voltage input for DEICE-Controller	DC in
2	GND DC		DC in
3	24V EXT	voltage input for WG Switches etc.	DC in
4	GND EXT		DC in

CON4 output 1..5

Pin	Identifier	Description	Type	Remark
1	IN1	Output 1 in	DC in
2	OUT1	Output 1 out	DC out	JP1: 1-2 d-out, 2-3 na
3	IN2	Output 2 in	DC in
4	OUT2	Output 2 out	DC out	JP2: 1-2 d-out, 2-3 na
5	IN3	Output 3 in	DC in
6	OUT3	Output 3 out	DC out	JP3: 1-2 d-out, 2-3 na
7	IN4	Output 4 in	DC in
8	OUT4	Output 4 out	DC out	JP4: 1-2 d-out, 2-3 na
9	IN5	Output 5 in	DC in
10	OUT5	Output 5 out	DC out	JP5: 1-2 d-out, 2-3 na

CON5 output 6..10

Pin	Identifier	Description	Type	Remark
1	IN6	Output 6 in	DC in
2	OUT6	Output 6 out	DC out	JP6: 1-2 d-out, 2-3 na
3	IN7	Output 7 in	DC in
4	OUT7	Output 7 out	DC out	JP7: 1-2 d-out, 2-3 na
5	IN8	Output 8 in	DC in
6	OUT8	Output 8 out	DC out	JP8: 1-2 d-out, 2-3 na
7	IN9	Output 9 in	DC in
8	OUT9	Output 9 out	DC out	JP9: 1-2 d-out, 2-3 na
9	IN10	Output 10 in	DC in
10	OUT10	Output 10 out	DC out	JP10: 1-2 d-out, 2-3 na

CON6 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 1	digital input	input	HBL1-AL1
2	GND	reference voltage	DC out
3	DIN 2	digital input	input	HBL2-AL1
4	GND	reference voltage	DC out
5	DIN 3	digital input	input	HBL3-AL1
6	GND	reference voltage	DC out
7	DIN 4	digital input	input	HBL4-AL1
8	GND	reference voltage	DC out

CON7 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 5	digital input	input	HBL5-AL1
2	GND	reference voltage	DC out
3	DIN 6	digital input	input	HBL6-AL1
4	GND	reference voltage	DC out
5	DIN 7	digital input	input	HBL7-AL1
6	GND	reference voltage	DC out
7	DIN 8	digital input	input	HBL8-AL1
8	GND	reference voltage	DC out

CON8 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 9	digital input	input	HBL9-AL1
2	GND	reference voltage	DC out
3	DIN 10	digital input	input	HBL10-AL1
4	GND	reference voltage	DC out
5	DIN 11	digital input	input	HBL11-AL1
6	GND	reference voltage	DC out
7	DIN 12	digital input	input	SUB-AL1
8	GND	reference voltage	DC out

CON9 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 13	digital input	input	RBL-AL1
2	GND	reference voltage	DC out
3	DIN 14	digital input	input	Int. Temp. Sens-AL
4	GND	reference voltage	DC out
5	DIN 15	digital input	input	Amb. Temp. Sens
6	GND	reference voltage	DC out
7	DIN 16	digital input	input	Sub. Temp. Sens.
8	GND	reference voltage	DC out

CON10 I/O 1

Pin	Identifier	Description	Type	Remark
1	OUT 17	24VDC out	DC out	HBL1
2	GND_EXT	GND	DC out
3	OUT 18	24VDC out	DC out	HBL2
4	IN 33	input	DC in
5	GND_EXT	com	DC out
6	IN 34	input	DC in
7	na	na	na
8	na	na	na

CON11 I/O 2

Pin	Identifier	Description	Type	Remark
1	OUT 19	24VDC out	DC out	HBL3
2	GND_EXT	GND	DC out
3	OUT 20	24VDC out	DC out	HBL4
4	IN 35	input	DC in
5	GND_EXT	com	DC out
6	IN 36	input	DC in
7	na	na	na
8	na	na	na

CON12 I/O 3

Pin	Identifier	Description	Type	Remark
1	OUT 21	24VDC out	DC out	HBL5
2	GND_EXT	GND	DC out
3	OUT 22	24VDC out	DC out	HBL6
4	IN 37	input	DC in
5	GND_EXT	com	DC out
6	IN 38	input	DC in
7	na	na	na
8	na	na	na

CON13 I/O 4

Pin	Identifier	Description	Type	Remark
1	OUT 23	24VDC out	DC out	HBL7
2	GND_EXT	GND	DC out
3	OUT 24	24VDC out	DC out	HBL8
4	IN 39	input	DC in
5	GND_EXT	com	DC out
6	IN 40	input	DC in
7	na	na	na
8	na	na	na

CON14_Power_output

Pin	Identifier	Description	Type
1	24V EXT	spare outputs	DC out
2	24V EXT		DC out
3	GND EXT		DC out
4	GND EXT		DC out

CON15 RS232 I2C

Pin	Identifier	Description	Type
1	RS232 0 TX	RS232 access 0	output
2	RS232 0 RX		input
3	GND		DC out
4	RS232 1 TX	RS232 access 1	output
5	RS232 1 RX		input
6	I2C SDA	I²C data	output
7	I2C SCL	I²C clock	output
8	GND		DC out

CON16 digital out

Pin	Identifier	Description	Type	Remark
1	COM 11		input
2	COM 12		input
3	OUT 11	switched COM1 by RE6	output	Deice Mode
4	COM 12		input
5	OUT 12	switched COM1 by RE5	output	Deice Requested
6	COM 12		input
7	OUT 13	switched COM1 by RE4	output	Rain BL Mode
8	COM 12		input
9	COM 14		input
10	OUT 14	switched IN4 by RE3	output	Rain BL Requested
11	COM 15		input
12	OUT 15	switched IN5 by RE2	output	Deice Alarm
13	COM 16		input
14	OUT 16	switched IN6 by RE1	output	Rain BL Alarm

CON17 external temperature sensors

Pin	Identifier	Description	Type	Remark
1	SENS OUT1	output to PT1000	DC out
2	SENS IN1	input to PT1000	DC in	Ambient Temp.
3	SENS OUT2	output to PT1000	DC out
4	SENS IN2	input to PT1000	DC in	Panel Temp.
5	SENS OUT3	output to PT1000	DC out
6	SENS IN3	input to PT1000	DC in	Int. Temp Refl. bottom
7	SENS OUT4	output to PT1000	DC out
8	SENS IN4	input to PT1000	DC in	Int. Temp. Refl. top

CON18 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 17	digital input	input	HBL1-AL2
2	GND	reference voltage	DC out
3	DIN 18	digital input	input	HBL2-AL2
4	GND	reference voltage	DC out
5	DIN 19	digital input	input	HBL3-AL2
6	GND	reference voltage	DC out
7	DIN 20	digital input	input	HBL4-AL2
8	GND	reference voltage	DC out

CON19 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 21	digital input	input	HBL5-AL2
2	GND	reference voltage	DC out
3	DIN 22	digital input	input	HBL6-AL2
4	GND	reference voltage	DC out
5	DIN 23	digital input	input	HBL7-AL2
6	GND	reference voltage	DC out
7	DIN 24	digital input	input	HBL8-AL2
8	GND	reference voltage	DC out

CON20 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 25	digital input	input	HBL9-AL2
2	GND	reference voltage	DC out
3	DIN 26	digital input	input	HBL10-AL2
4	GND	reference voltage	DC out
5	DIN 27	digital input	input	HBL11-AL2
6	GND	reference voltage	DC out
7	DIN 28	digital input	input	SUB-AL2
8	GND	reference voltage	DC out

CON21 digital input

Pin	Identifier	Description	Type	Remark
1	DIN 29	digital input	input	RBL-AL2
2	GND	reference voltage	DC out
3	DIN 30	digital input	input	Rain Sens.
4	GND	reference voltage	DC out
5	DIN 31	digital input	input	Deice Sens
6	GND	reference voltage	DC out
7	DIN 32	digital input	input	Opt. Sens
8	GND	reference voltage	DC out

CON22 I/O 6

Pin	Identifier	Description	Type	Remark
1	OUT 27	24VDC out	DC out	HBL11
2	GND_EXT	GND	DC out
3	OUT 28	24VDC out	DC out	SUB
4	IN 43	input	DC in
5	GND_EXT	com	DC out
6	IN 44	input	DC in
7	na	na	na
8	na	na	na

CON23 I/O 5

Pin	Identifier	Description	Type	Remark
1	OUT 25	24VDC out	DC out	HBL9
2	GND_EXT	GND	DC out
3	OUT 26	24VDC out	DC out	HBL10
4	IN 41	input	DC in
5	GND_EXT	com	DC out
6	IN 42	input	DC in
7	na	na	na
8	na	na	na

CON24 I/O 8

Pin	Identifier	Description	Type
1	OUT 31	24VDC out	DC out
2	GND_EXT	GND	DC out
3	OUT 32	24VDC out	DC out
4	IN 47	input	DC in
5	GND_EXT	com	DC out
6	IN 48	input	DC in
7	na	na	na
8	na	na	na

CON25 I/O 7

Pin	Identifier	Description	Type	Remark
1	OUT 29	24VDC out	DC out	RBL
2	GND_EXT	GND	DC out
3	OUT 30	24VDC out	DC out
4	IN 45	input	DC in
5	GND_EXT	com	DC out
6	IN 46	input	DC in
7	na	na	na
8	na	na	na

The connector reference is available at the printed version of the manual only. This is due to memory restrictions of the DEICE-Controller. Look at http://www.satnms.com/doc/html/deice/ for a full version of this manual.
